SLAM Navigation: Revolutionizing Autonomous Systems Across Industries

SLAM (Simultaneous Localization and Mapping) has undergone significant evolution since its introduction in 1988. Initially developed for military applications, SLAM was employed to assist drones and robots in navigating complex environments. As the technology matured, it found its way into civilian applications, such as robotic vacuum cleaners and autonomous vehicles. These applications have leveraged SLAM to significantly enhance device intelligence and operational efficiency.

Definition of SLAM Navigation

SLAM enables robots to simultaneously determine their position and construct a map of their surroundings in unknown environments. By utilizing sensors such as depth cameras or LiDAR, SLAM systems gather environmental data, which is then processed through sophisticated algorithms to estimate the device’s location and generate an accurate map of the environment.

SLAM technology resolves the "chicken-and-egg" problem in navigation: how a robot can map an environment without knowing its position while also requiring a map to determine its location. This capability has become a cornerstone in domains such as robotic navigation, autonomous driving, and augmented reality (AR), empowering devices to navigate complex environments without pre-defined maps.

SLAM systems typically consist of two main modules:

1. Front-End: Responsible for initial data processing, including feature extraction, motion estimation, and data association.
2. Back-End: Focuses on optimizing these estimates to enhance overall system accuracy and robustness.

Based on the type of sensors used, SLAM can be categorized into several types:

• Visual SLAM: Utilizes cameras to capture image data.
• LiDAR-based SLAM: Employs LiDAR to scan the environment’s structure.
• IMU-based SLAM: Relies on inertial sensors for self-localization.

Why is SLAM Navigation Important?

• Autonomous Navigation: SLAM enables robots to move independently in environments without external navigation aids, crucial for exploring unknown areas or indoor environments lacking GPS signals.
• Environmental Awareness: SLAM systems create maps that help identify obstacles, enabling collision avoidance and effective navigation.
• Path Planning: Accurate maps allow robots and vehicles to plan optimal and safe routes.
• Increased Mission Success: Whether for search, rescue, or surveillance tasks, SLAM ensures precise localization in dynamic environments, improving mission outcomes.
• Adaptability: SLAM systems handle varying lighting conditions, dynamic environmental changes, and diverse terrains, providing reliable navigation capabilities.
• Cost Efficiency: Compared to navigation methods relying on expensive sensor networks or complex marking systems, SLAM is more economical and practical.

In indoor or underground environments where GPS is unavailable, SLAM becomes especially critical. For instance, visual SLAM systems use cameras to capture images of the surroundings, employing feature matching and motion estimation algorithms to map and track the robot’s position. LiDAR-based SLAM systems detect environmental structures by emitting laser beams and analyzing the returned signals.

Applications of SLAM Navigation

Autonomous Driving

SLAM plays a pivotal role in enabling autonomous vehicles to achieve precise localization and environmental perception, which are essential for navigating diverse terrains, from city streets to highways. By integrating data from cameras and LiDAR, autonomous driving systems achieve reliable navigation even in dynamically changing environments.

Mobile Robot Navigation

In industries and services, mobile robots equipped with SLAM technology autonomously navigate to perform tasks such as material handling, cleaning, and monitoring. For example, MeierVision's top-view SLAM navigation solution uses 3D cameras to scan overhead features while the robot traverses its environment. This innovative approach eliminates reliance on ground-based markers, offering unparalleled accuracy and robustness in dynamic, cluttered scenarios.

Robotic Vacuum Cleaners

SLAM allows robotic vacuum cleaners to simultaneously localize and map indoor environments, ensuring efficient cleaning. The maps generated by SLAM enable these robots to plan optimal cleaning routes while avoiding obstacles for smarter navigation.

Top-View SLAM Navigation

MeierVision’s top-view SLAM navigation leverages overhead features to achieve precise localization and mapping. By integrating deep learning networks trained on extensive industrial data, this approach is optimized for diverse environments, including warehouses with ceilings 2 to 12 meters high, long narrow aisles, and dynamic workspaces.

Industry Use Cases for SLAM Navigation

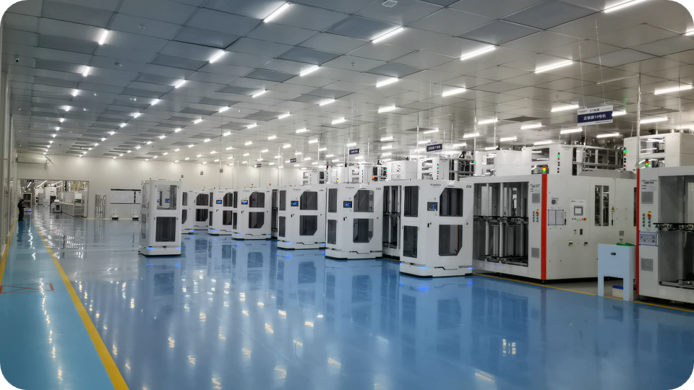

Case 1: Smart Logistics in the Photovoltaic Industry

In a photovoltaic plant, over 500 AGVs equipped with MRDVS top-view SLAM solution operate across 80,000 square meters of factory floor. Despite high material flow and frequent environmental changes, the system has maintained faultless performance for over a year, providing robust navigation without localization errors.

Case 2: Automotive Manufacturing

An automotive factory in southern China uses MRDVS SLAM solution to navigate large AMRs tasked with transporting engine components. The system’s ability to adapt to human-vehicle mixed traffic and rapidly changing layouts ensures operational stability in this high-dynamic environment.

Case 3: Dense Warehouse Management

A garment manufacturer’s warehouse with over 4,000 densely packed storage locations faced challenges with traditional 2D LiDAR navigation. MRDVS SLAM technology enabled AGV forklifts to navigate and transport pallets efficiently, overcoming obstacles presented by dynamic inventory changes.

Conclusion

SLAM navigation has revolutionized autonomous operations across industries by enabling robots to achieve accurate localization and efficient navigation in complex environments. From enabling self-driving cars to optimizing industrial and commercial robots, SLAM continues to push the boundaries of what autonomous systems can achieve.

MeierVision’s top-view SLAM solution stands at the forefront of these advancements, providing unmatched precision, adaptability, and scalability. By addressing challenges in dynamic environments and offering versatile applications, MeierVision is not only redefining navigation but also paving the way for smarter, safer, and more efficient automation solutions.
